CAD Modeling Capabilities
At the heart our tool design capabilites is our expertise with CAD modeling. Our method uses a master-model concept which is at the core or our construction process. As a by-product of this we have acquired skills of modeling parts suitable for manufacturing. Our approach yields tool-ready models that will accelerate the tool construction process.
If your staff lacks the resources for CAD modeling contact us to help you satisfy this requirement.
CAD Model of Flywheel
Model created from customer blueprint.
Compressor
Scroll
Model created from customer drawing. Scroll pattern defined from mathematical formula.

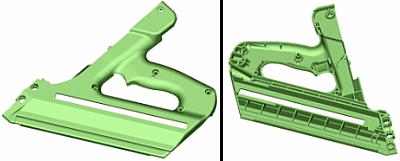

Nail Gun Handle Halves
Geometry
created from customer design and then altered for the
injection
molding process. This required the addiiton of draft, parting lines and
changes to wall thickness.
